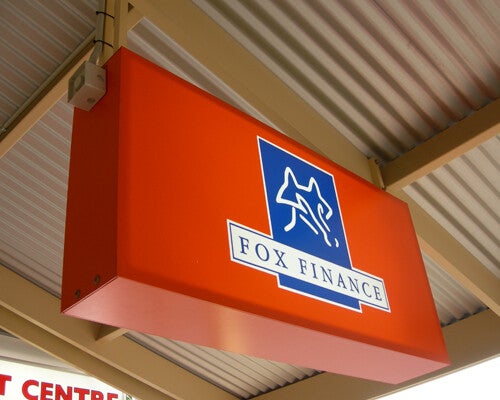

Under-Awning Double-Sided LED Light Boxes

Maximize your storefront’s visibility with our premium Under-Awning Double-Sided LED Light Boxes.

100% Austaralian Made at our Yatala HQ

Engineered for durability and high-impact branding, these signs are designed to capture foot traffic from both directions, ensuring your business stands out day and night.

Key Features

• Superior Build Quality: Each unit features a fully welded aluminum frame, providing a seamless, rust-proof structure that outperforms standard "screw-together" kits.

• Automotive-Grade Finish: Painted with high-quality 2-Pak (Two-Pack) acrylic urethane, offering a high-gloss, UV-resistant finish that maintains its color and integrity against harsh outdoor elements.

• Easy Graphics Management: Designed with slide-in Perspex (acrylic) faces, making initial installation and future branding updates quick and effortless.

• Brilliant Illumination: Equipped with high-efficiency, cool-white LED modules that provide uniform brightness across both faces without "hot spots" or shadows.

• Versatile Mounting: Includes an adjustable hanging bracket system with heavy-duty base plates, allowing for secure installation on various awning pitches and ceiling types.

Technical Specifications

Component Specification Frame Material Marine-grade extruded aluminum (Welded)

Finish Industrial 2-Pak Paint (Custom colors available)

Face Material High-impact Opal Perspex

Lighting IP67 Waterproof LED Modules

Mounting Adjustable telescopic brackets with reinforced base plates

Power Internal Meanwell Transformer (Standard 240V plug or hardwire)

Why Choose Our Light Boxes?

A well-lit under-awning sign is your 24/7 salesperson. By combining the structural strength of welded aluminum with the premium finish of 2-pak paint, we provide a signage solution that looks as good in year five as it does on day one.

Whether you are refreshing a retail boutique, a busy café, or a professional suite, our light boxes offer the perfect blend of aesthetic appeal and structural longevity.

Installation Note for Clients

All units come pre-wired with an internal LED Driver. The adjustable bracket system allows for a vertical drop of 250mm to 500mm (standard), ensuring the light box clears all door swings and remains at the optimal eye level for pedestrians.

Technical Data Sheet: Under-Awning Series

Product Overview: Professional-grade, double-sided illuminated signage engineered for external commercial environments.

Structural Specifications

• Chassis: 3mm wall-thickness extruded aluminum, fully MIG/TIG welded for maximum structural integrity.

• Finish: Multi-stage 2-Pak (two-part) acrylic urethane paint system. High-gloss finish with chemical and UV resistance.

• Faces: 3mm or 4.5mm High-Impact Opal Perspex. Slide-in/out design for rapid maintenance.

Lighting & Electrical

• Light Source: IP67-rated constant current LED modules (6500K Cool White).

• Driver: Meanwell XLG Series (or equivalent) mounted internally.

• Input Voltage: 220–240V AC.

• Output: 12V / 24V DC.

• Wiring: Pre-wired to a 3-core fly-lead through the mounting bracket for easy connection to mains.

Mounting System

• Bracket Type: Telescopic or Fixed-length square-tube aluminum.

• Adjustment: Variable height and pitch adjustment to compensate for sloped awnings.

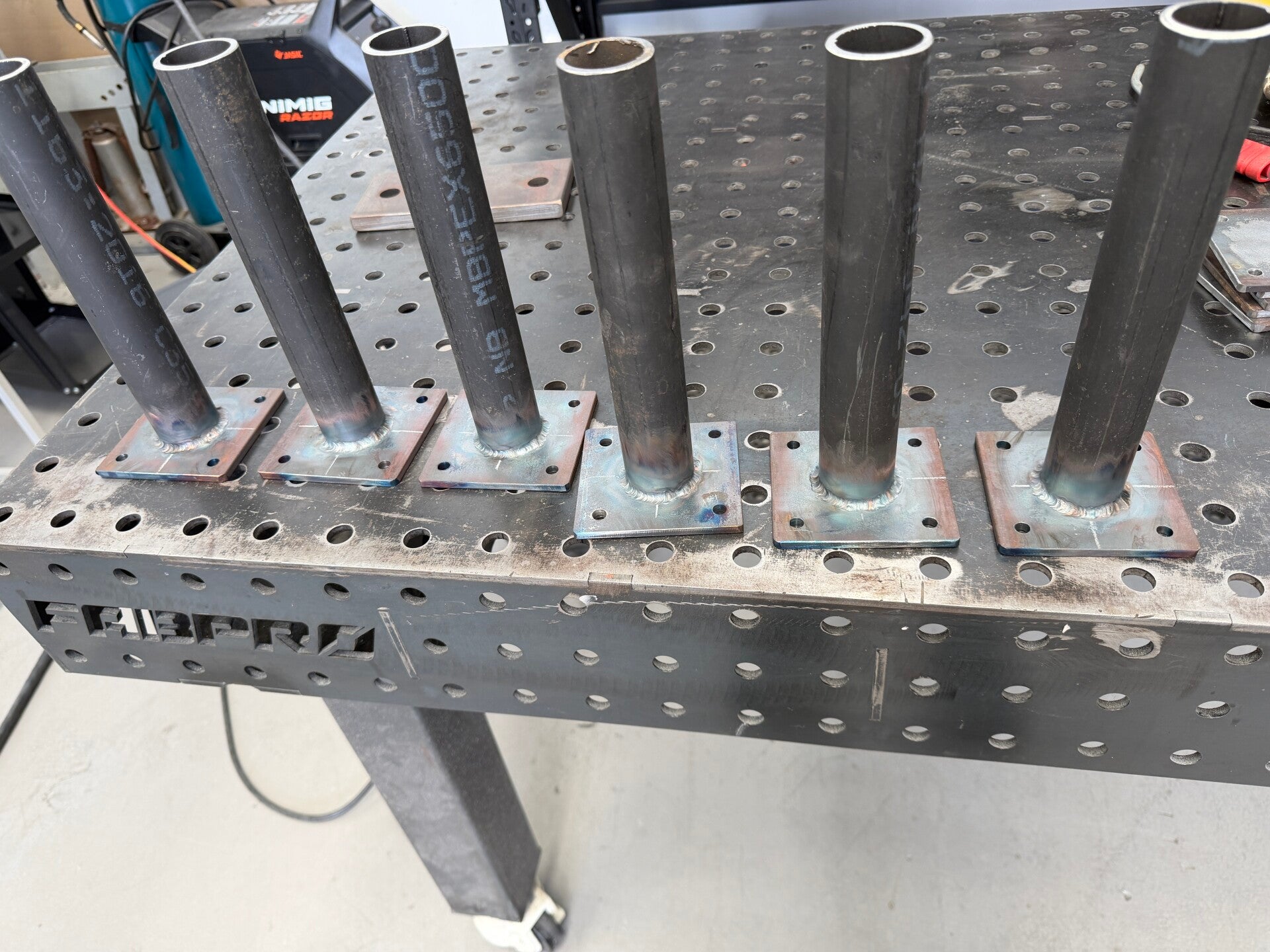

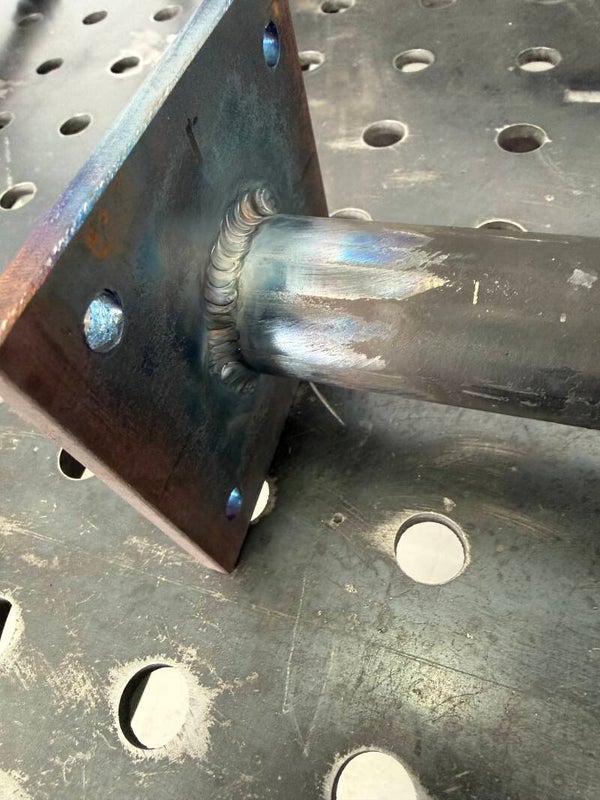

• Base Plates: 8mm thick pre-drilled aluminum base plates (4-bolt pattern) for secure fixing to steel, timber, or concrete beams.

Safety & Compliance

• IP Rating: IP65 (Internal components IP67).

• Wind Loading: Engineered to withstand standard wind loads for coastal and urban environments.

Whats Included?

Welded Aluminium box painted with 2k Painting system fitted with with 6500k Led Modules with power supply

2 x 3mm high impact arcylic faces

Optional Extras

Adjustable brackets painted to match

Digital printed translucent self adhesive vinyl graphics

Don't have print-ready artwork? No problem. We provide a full-service design experience at a flat hourly rate to ensure your brand looks its best on any surface. Email our team info@signwritingbrisbane.com.au

Estimated Timeframes

• Minor Edits ($80) Simple text changes, logo placement, or resizing existing files (approx. 1 hour).

• Standard Layout ($160–$240) A-Frame design, basic banner, or vehicle door magnets (2–3 hours).

• Full Custom Project ($320+) Full shopfront concepts or complex vehicle wraps (4+ hours).

Note: Our $80/hr rate includes final high-resolution files and one round of revisions to ensure you're 100% satisfied with the result.
